Ointment Plant

Ointment Plant

Capacity : we have capacity to manufacture 100 kg to 1000kg.with single mfg. vessel , semi-automatic plant and fully automatic plant with automatic valves through Plc with require safety feature.

Application : Pharmaceuticals: Creams, gels, ointment, and biotech products

Cosmetics : cold creams, hair dye- cream, conditioners, lotions, gels, shampoo, toothpaste

Automatic-Ointment-plant-img

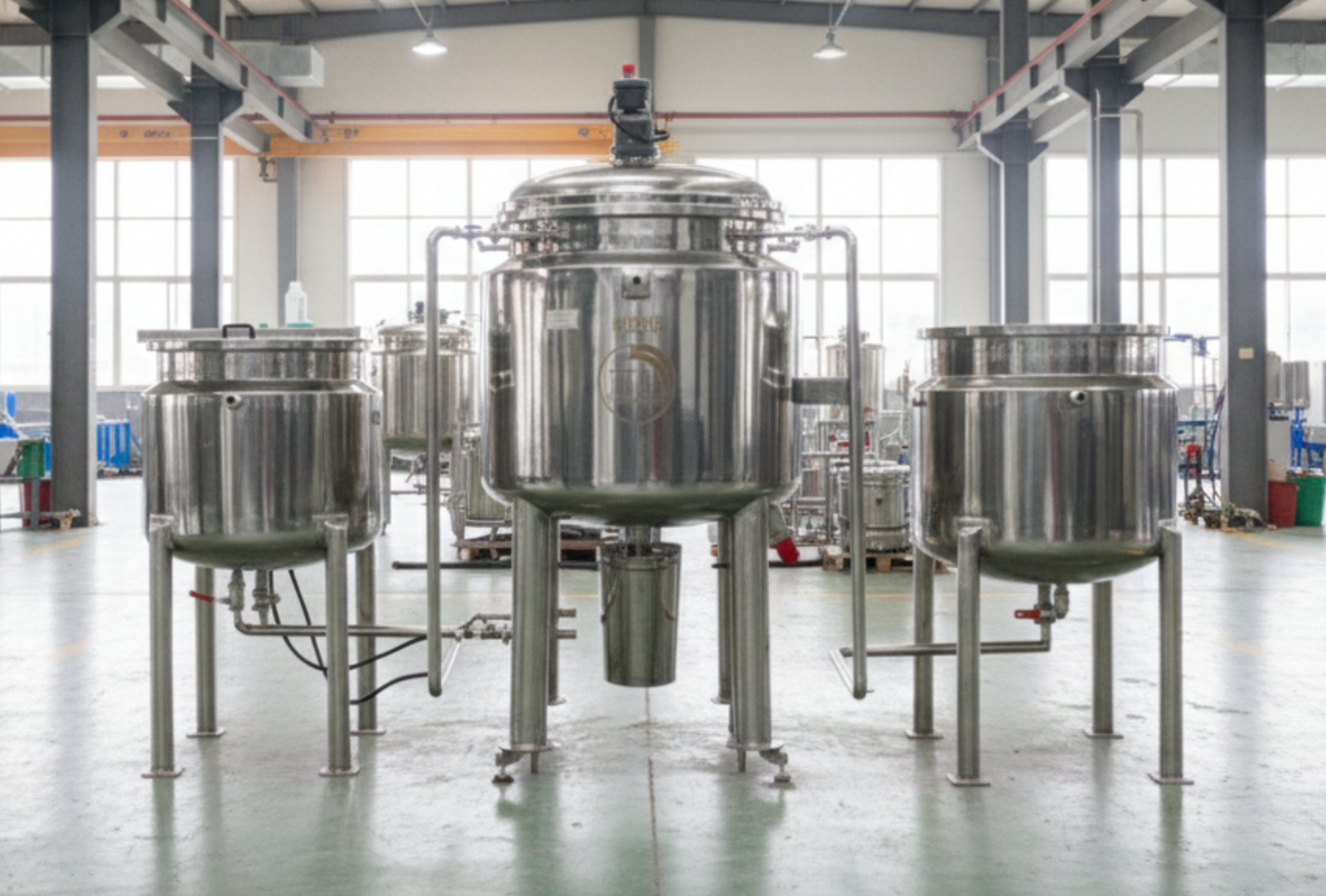

Automatic Ointment plant

  • As per the application assembly drives designed.
  • Various anchor design depends on application
  • We used food grade silicon gaskets
  • Lid lifted by hydraulic for easy maintenance and cleaning
  • Viper glasses provided for observe the status of product
  • VFD for anchor agitation to vary the RPM
  • In main vessel bottom/in line homogenizer provided..
  • VFD for homogenizer to vary the RPM
  • Load cell for fast and accurate measuring system
  • Vessels are jacketed .jacket have heating and cooling with temperature controller and safety equipment
  • For zero retention in inside the vessel and connecting pipelines vacuum pump provided.
  • Facility to Automatic transfer the material from water phase vessel and wax phase vessel through vacuum.
  • Electro polished pipe line connected with TC .easy to remove and easy for maintenance point of view.
  • No air contaminants/human contaminants
Single-Pilot-Mfg-img

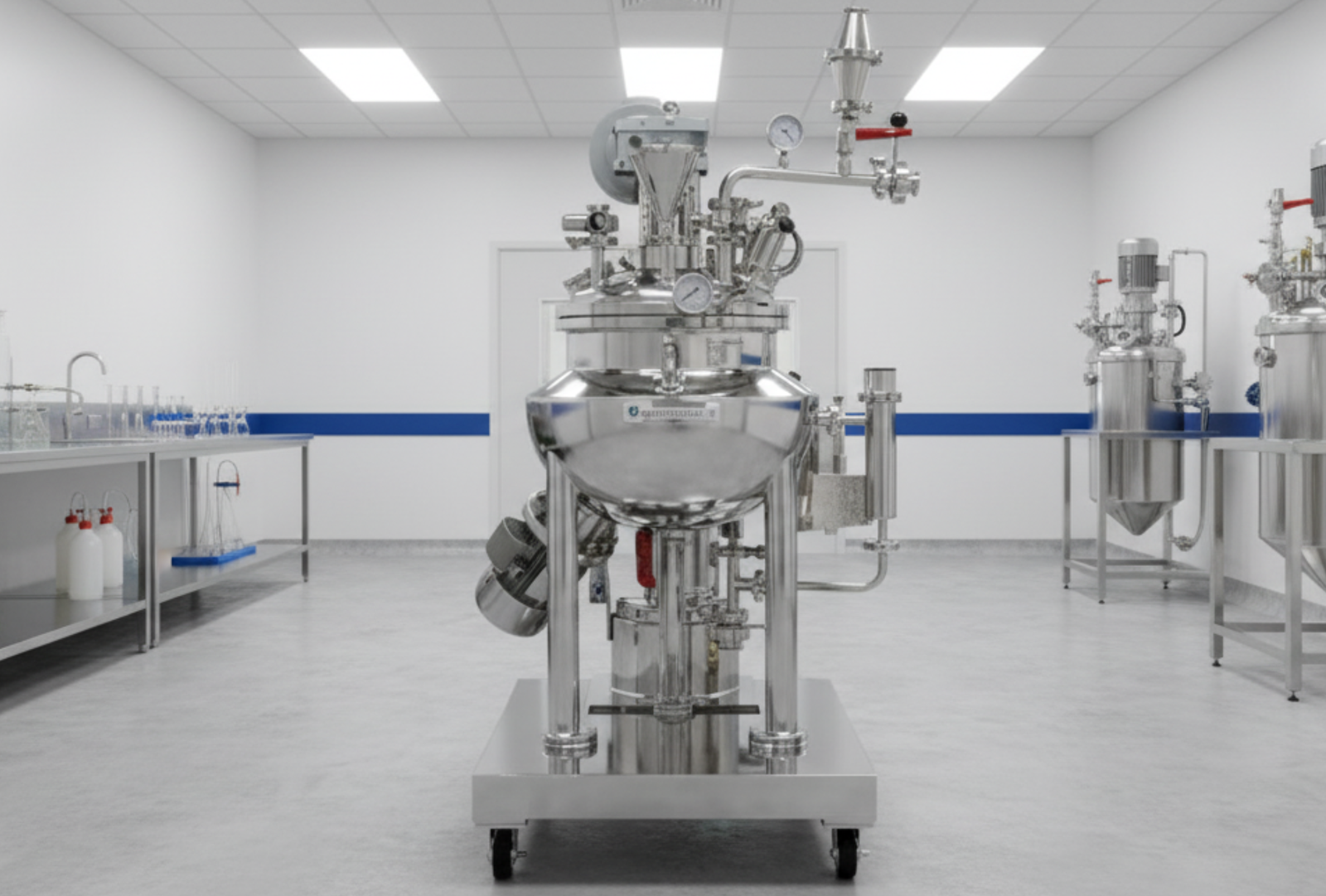

Single/Pilot Mfg. Vessel

  • Available in small capacity up to 100 kg with vacuum facilities
  • Various anchor design depends on application
  • Lid lifted by hydraulic for easy maintenance and cleaning
  • VFD for anchor agitation to vary the RPM
  • VFD for homogenizer to vary the RPM
  • Load cell for fast and accurate measuring system
  • Vessel is jacketed. jacket have heating and cooling with temperature controller and safety equipment
  • Electro polished pipe line connected with TC. easy to remove and easy for maintenance point of view.
Storage-vessel-img

Storage vessel

  • AS per the product, storage vessel make with S.S 304 or S.s 316.
  • Both side operable lid for easy cleaning
  • Provided Custer wheel on leg for easy move with material
  • Bottom is conical for easy cleaning
  • Bottom Material removing facility.
Contra-mixture

Contra Mixture

Silent Features of Contra Rotating

  • All contact parts are in of SS 304 / SS 316 quality material.
  • Compact design requires comparatively smaller floor space.
  • Product container mounted on mounting lugs or legs as required by customer
  • Hydraulic power pack with cylinders are provided for lowering and lifting movement of top cover with stirrer’s drive assembly.
  • Fixed product container for safe operation during mixing.
  • Product container having hemispherical shape bottom.
  • As stirrer is a top driven and sealing doesn’t comes in contact with product, there isn’t any black particle contamination problem.
  • General structure & all non-contact parts are made out of Mild Steel & same will painted in Standard Model.

Special Features of Contra Rotating

  • Machine design as per the vacuum application for deaeration of mixing container, to remove air bubbles from the product during mixing for GEL products
  • Material discharge from bottom. Flush bottom valve provided for material discharge.
  • M/C provided with Light glass, material inlet, water inlet, steam & washing water inlet, air suction valve for vacuum, vacuum gauge etc…
  • Mixing assembly have two speed facility. Variable speed drive facility for mixing assembly will be provided on extra cost, as a OPTIONAL facility.
  • Trap vessel also available for oil base vacuum pump to avoid damage of oil

Optional Features of Contra Rotating

  • “PLC” based operating panel for automation.
  • Variable speed drive for main motor for variable rpm of mixing assembly.
  • Online sampling port to take sample of product during mixing.
  • Inline homogenizer or Colloid Millie and mostly used for highly viscos material.
planetory-mixture

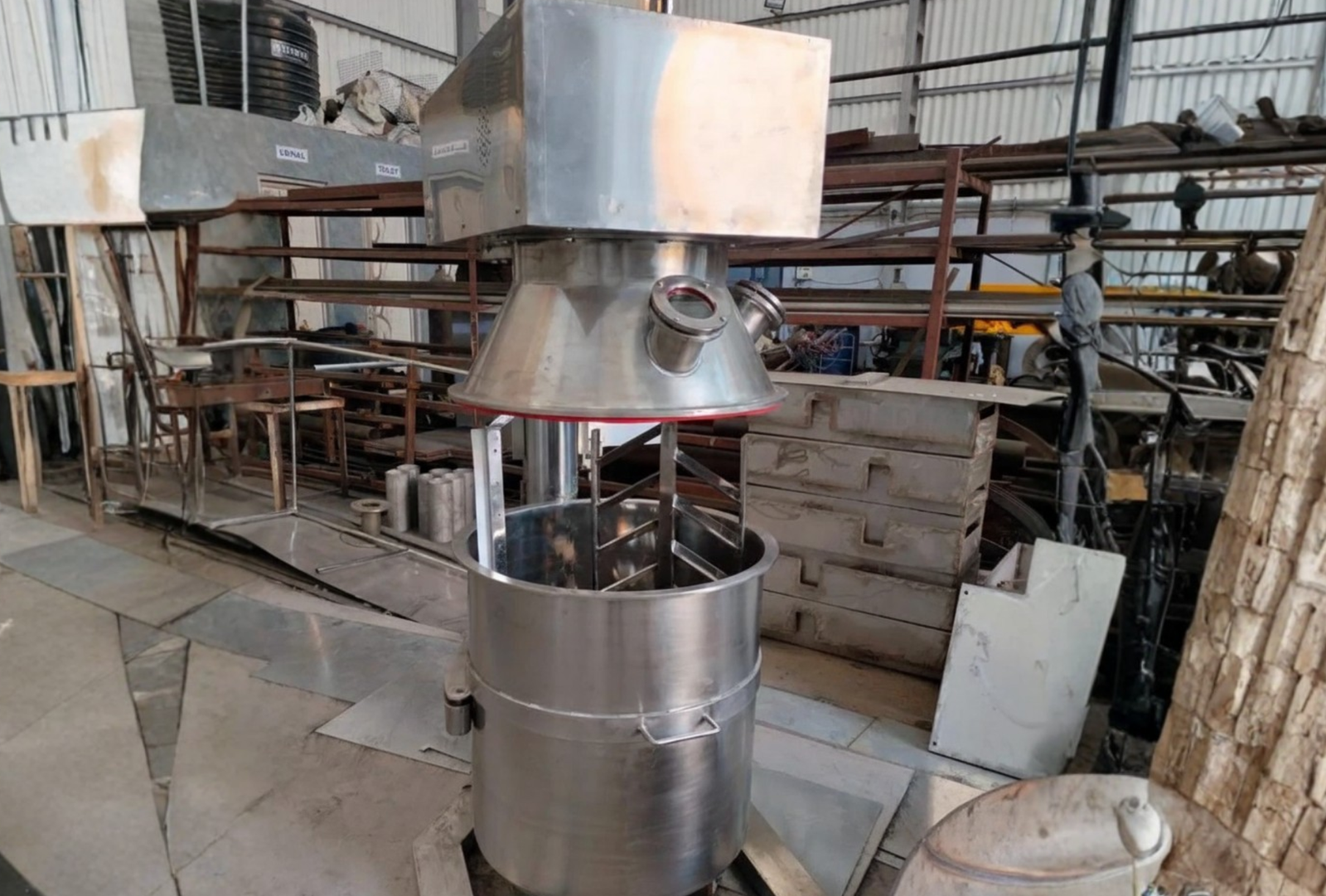

Planetary Mixer Manufacturer

PLM mainly use for toothpaste, cream mfg., gel lotion, hair care product etc. PLM is the same as contra mixture as per the name works on the principal of contra rotation blades for simultaneous beating and scraping operation. In PLM blade will be on offset of center and it will do bitting of material and scraping better than mfg. vessels. We have various capacity of 100kg to 500 kg in PLM.

Syrup-img

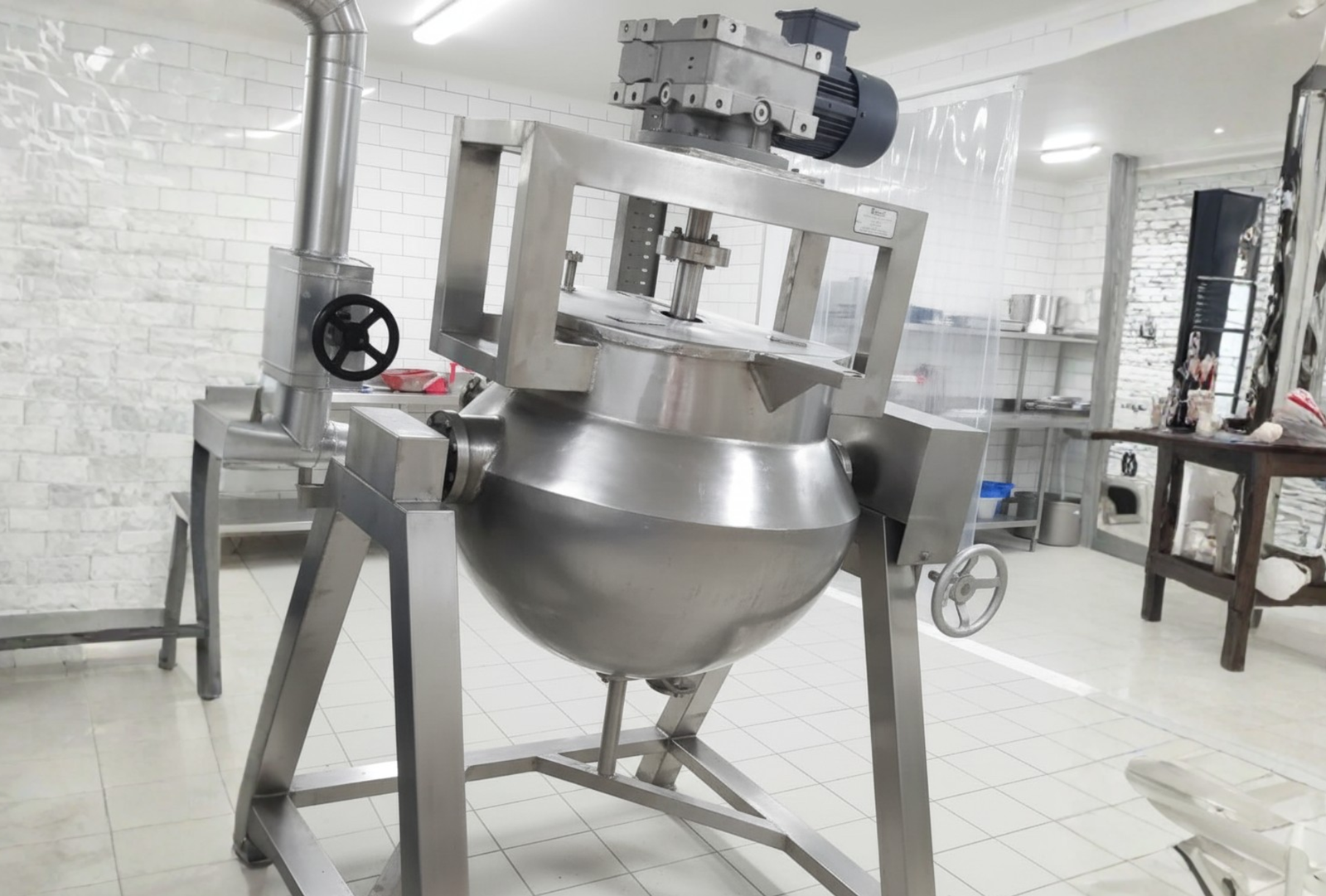

Sugar syrup cattle

Sugar syrup is in hemispherical /bowl shape. mainly used to melt a sugar in food grade industries/pharma industries. available in heating with boiler steam /hot oil or emulation heater.

  • It can be turn up to 90 degrees to remove a material by manual mechanism
  • Gear box mounted on top of the vessel with slow rpm
  • Material circulation system provided
  • Scraper system available in stirring blade
mixxing-vessel

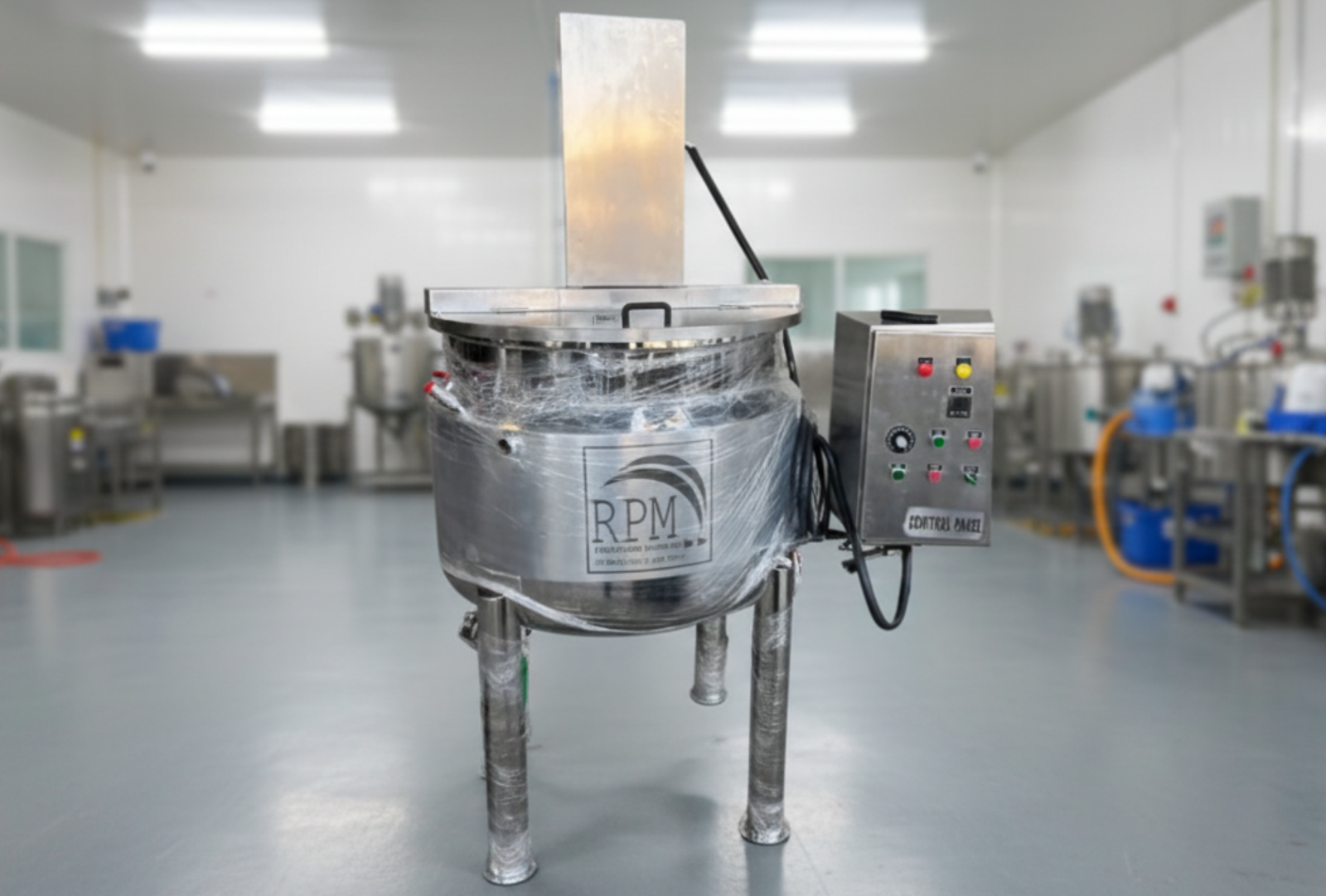

Mixing vessel

Mixing vessel have multipurpose use. We can be used for those material who not require vacuum in mfg process.it can also be used for as storage vessel for chocolate and pnutbutter. We have various modal for mixing vessel with capacity of 100 kg to 5000 kg. It can be used in option of Mfg. vessel. Mixing vessel is mainly used for pharma, chemical, cosmetic, herbal, food grade industries.

  • Capacity: 100 kg to 5000 kg
  • Application: Used as oil phase /water phase vessel , mfg cream ,lotion shampoo , gel , wax , petroleum jelly
  • Design has flexility to design as per our requirement
top-homogenizer

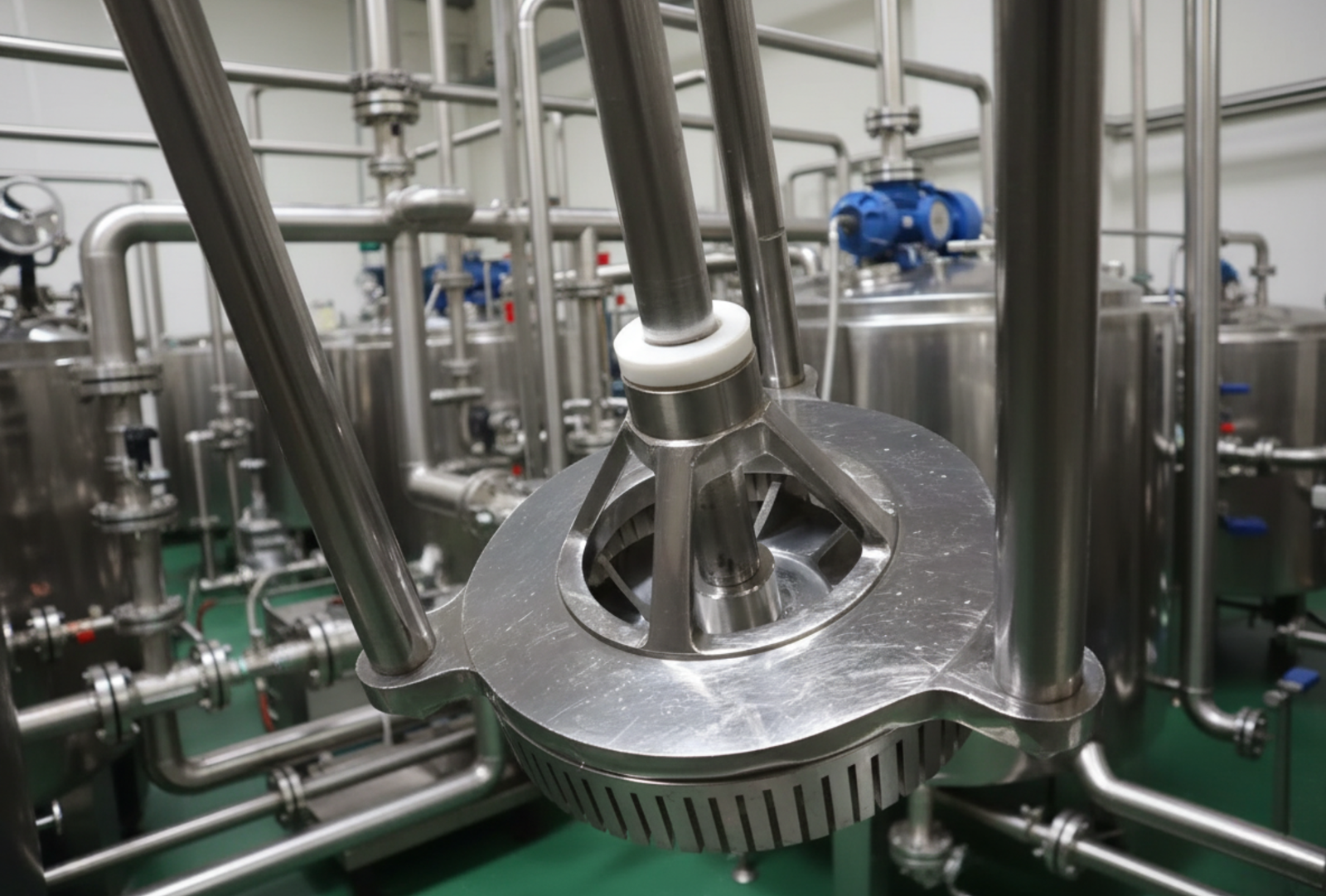

Top homogenizer

We have unique design for Top homogenizer. It is mainly used for liquid emulsification as well as cough syrup mfg. We have up down mechanism and it can be used also for require hieght. Mainly used for cosmetic and pharma industries.
